Dimensional Accuracy: Tolerances typically reach IT7-IT8 grades (±0.01–0.05 mm), e.g., electronic connectors or micro-gears.
Critical Control Metrics: Beyond basic dimensions (length/width/height), geometric tolerances (flatness, roundness) and internal residual stress must be managed.
System Influences: Material shrinkage, mold precision, process parameters, and ambient humidity/temperature require synchronized control.
Example: In automotive sensor housing production, a 0.1mm warpage can cause seal failure—an issue avoided by precision molding but common in standard processes.
| Material | Shrinkage (%) | Typical Use Cases | Key Advantages |
|---|---|---|---|
| PC (Polycarbonate) | 0.5–0.7 | Optical lenses, housings | High transparency, impact-resistant |
| ABS | ≈0.5 | Electronics housings | Easy plating, dimensional stability |
| PMMA | 0.1–0.8 | Light guides, lenses | High clarity, weather-resistant |
| Glass-filled PA | 0.1–0.6 | Gears, bearing mounts | High rigidity, low creep |
Adding glass fibers or mineral fillers reduces shrinkage (e.g., 30% GF-PA66 shrinks only 0.3%). Material drying (preventing hydrolysis) and process stability (temperature fluctuations ≤2°C) further minimize shrinkage variation.

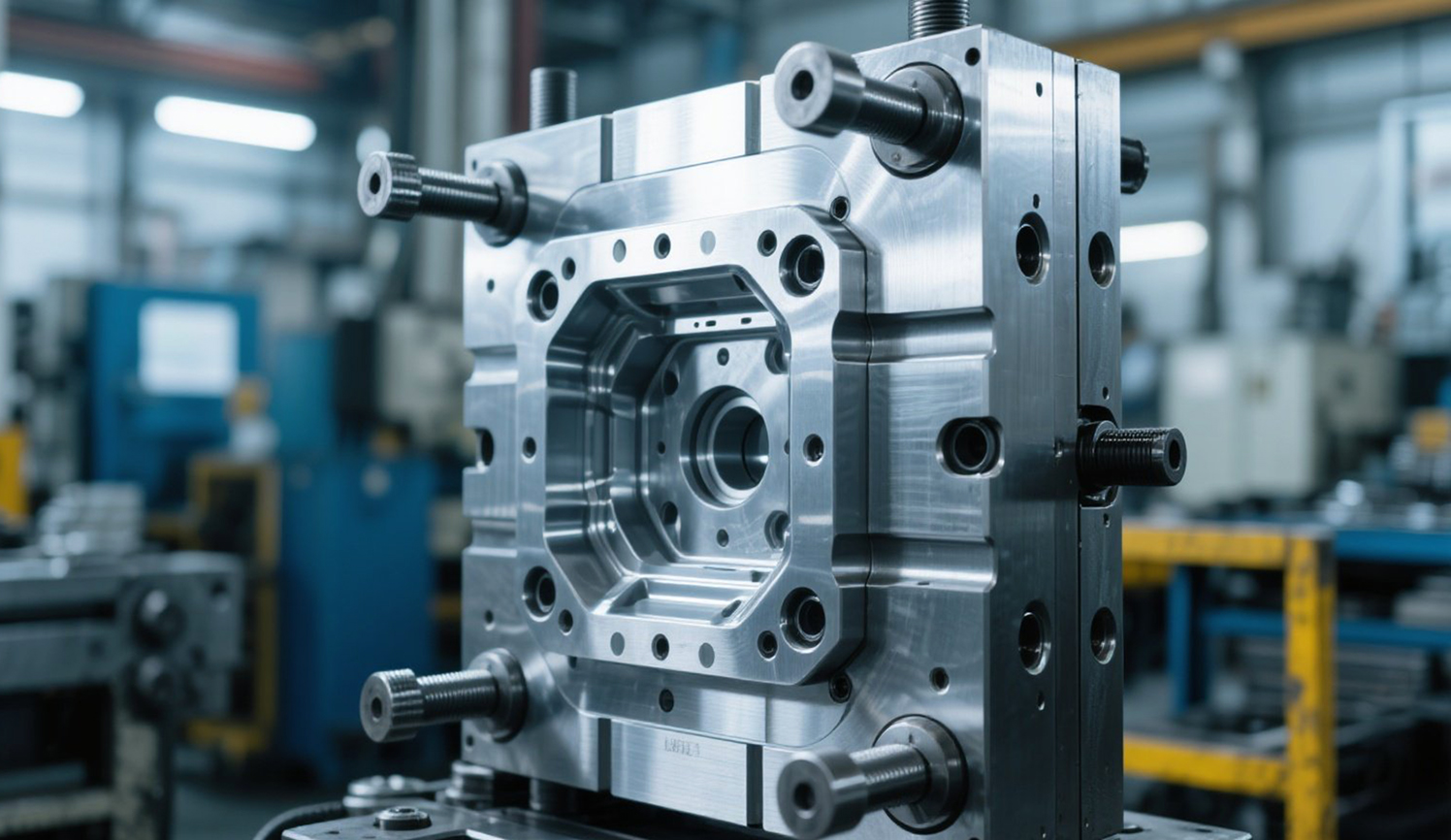

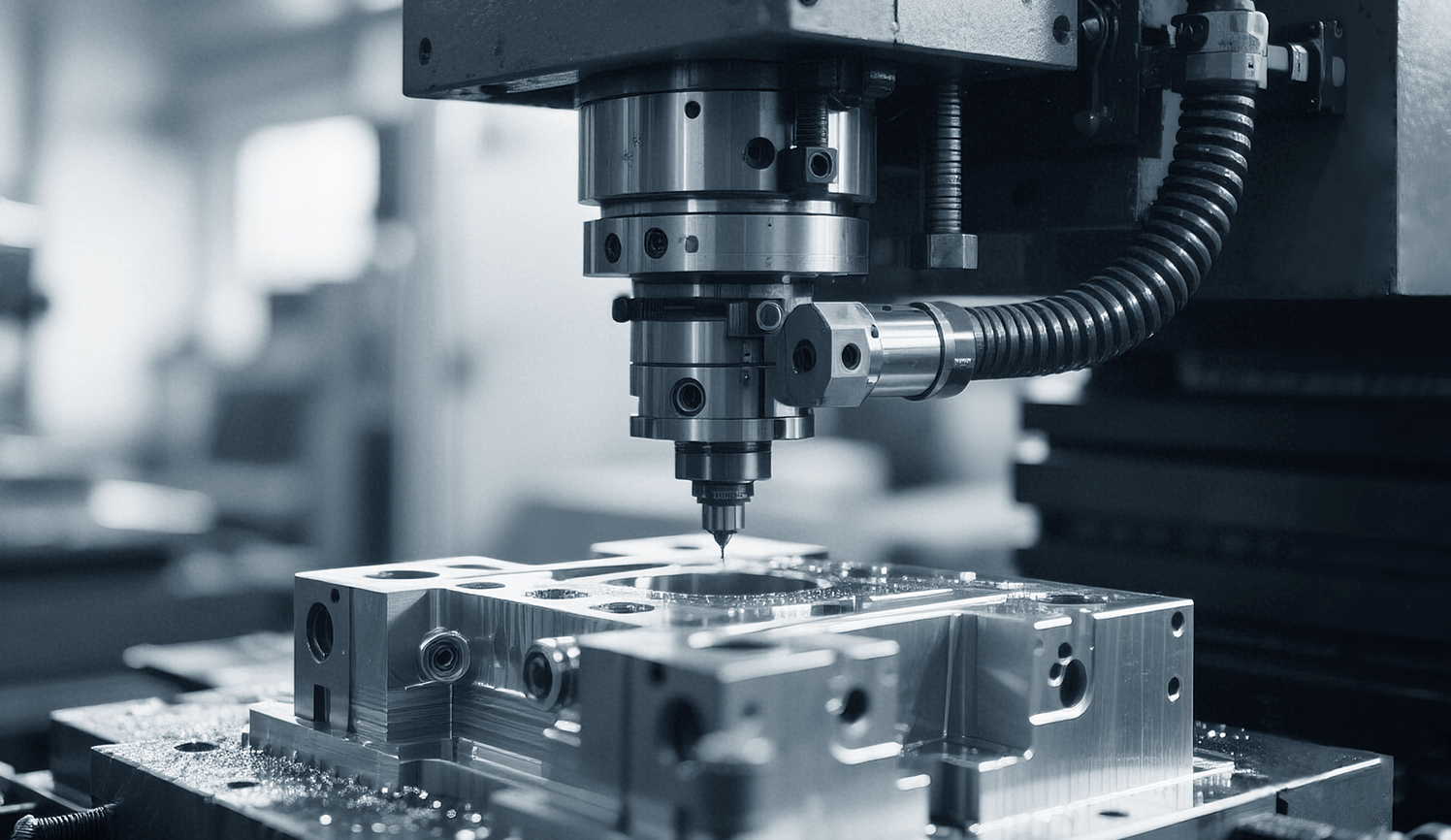

Machining Precision: ±0.01mm accuracy via slow wire-cutting or mirror EDM.
Material & Structure:
Cores use pre-hardened steel (H13) or beryllium copper (thermal conductivity: 160W/m·K, hardness: 380HB)—ideal for optical lenses due to rapid, uniform cooling.
Conformal cooling channels ensure temperature gradients ≤2°C, preventing warpage.
Surface Treatment: Optical cavities often feature nickel plating (enhancing gloss) or diamond turning (surface roughness Ra <0.01μm).
Case Study: A lens manufacturer reduced demolding force by 40% and minimized light-scattering defects by controlling cavity roughness (Ra 0.05–0.1μm).
"Precision requires patience" is embodied in this process:
Multi-Stage Injection: 4+ phases (e.g., sprue → runner → 90% cavity fill → packing) to avoid turbulence or jetting.
Parameter Refinement:
Precise V/P switchover at 95% cavity fill—too early causes sinks; too late creates flash.
Extended cooling times ensure complete solidification; alternating mold temperatures (high temp → rapid cooling) may be used.
Real-Time Monitoring: Pressure sensors track cavity pressure curves for cycle-to-cycle consistency.

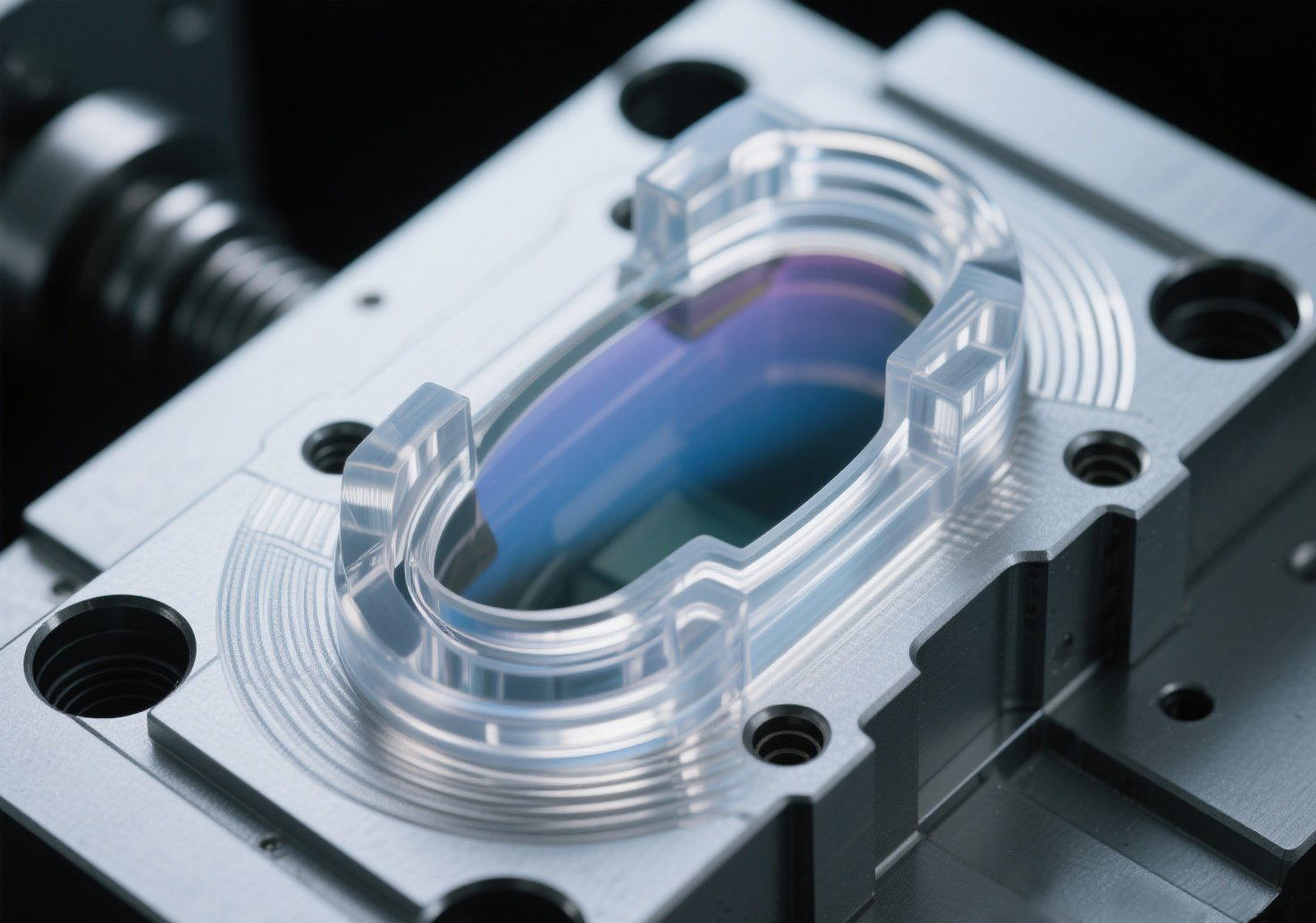

Optical components (lenses, light guides) demand extreme precision—representing the highest value segment for precision molding:
Materials: High transparency (>90% light transmission) and low birefringence (e.g., COC, PMMA).
Mold Technology:
Single-point diamond turning for aspherical cores.
Nanotextures (e.g., anti-reflective microstructures) replicated onto surfaces.
Process Innovation:
Variothermal molding (rapid heating to 120°C for filling, then cooling to 60°C for demolding) eliminates weld lines and enhances gloss.
Production in cleanrooms prevents dust-induced light scattering.
For Dongguan Baihao plastics, precision molding is a synergy of five pillars: materials, molds, processes, equipment, and environment. From selecting low-shrinkage polymers to designing micron-accurate tooling and executing multi-stage controls, every step requires scientific rigor and experience.
When these elements align, even complex parts—like microfluidic chips or multi-lens arrays—can be mass-produced with repeatable excellence. This is the essence of modern manufacturing: “Precision Equals Competitiveness.”
“In injection molding, standard is routine—precision is artistry.”
