Thermal Stress Management: With a 10x difference in shrinkage rates between metal inserts (e.g., connector terminals) and plastics, Baihao’s insert preheating system (150-220°C precision control) and shrinkage compensation algorithms reduce interface stress cracking to <0.3%.
Molecular-Level Bonding: For TPE overmolding on rigid substrates (PC/ABS), polar modification technology enhances interfacial adhesion. Baihao’s database covers 200+ material combinations, achieving peel strength >15N/cm.
Micron-Level Deformation Control
Mold Thermal Deformation Compensation: In automotive ECU connector insert molding, gradient mold temperature control (≤1.5°C cavity variation) and pre-compensated structural design ensure 0.05mm flatness tolerance.
Precise Rheology Control: For 0.3mm-thick smartwatch buttons, ultra-high-speed valve gates (300mm/s injection) eliminate flow marks, achieving surface Ra <0.8μm.
Closed-Loop Process Monitoring

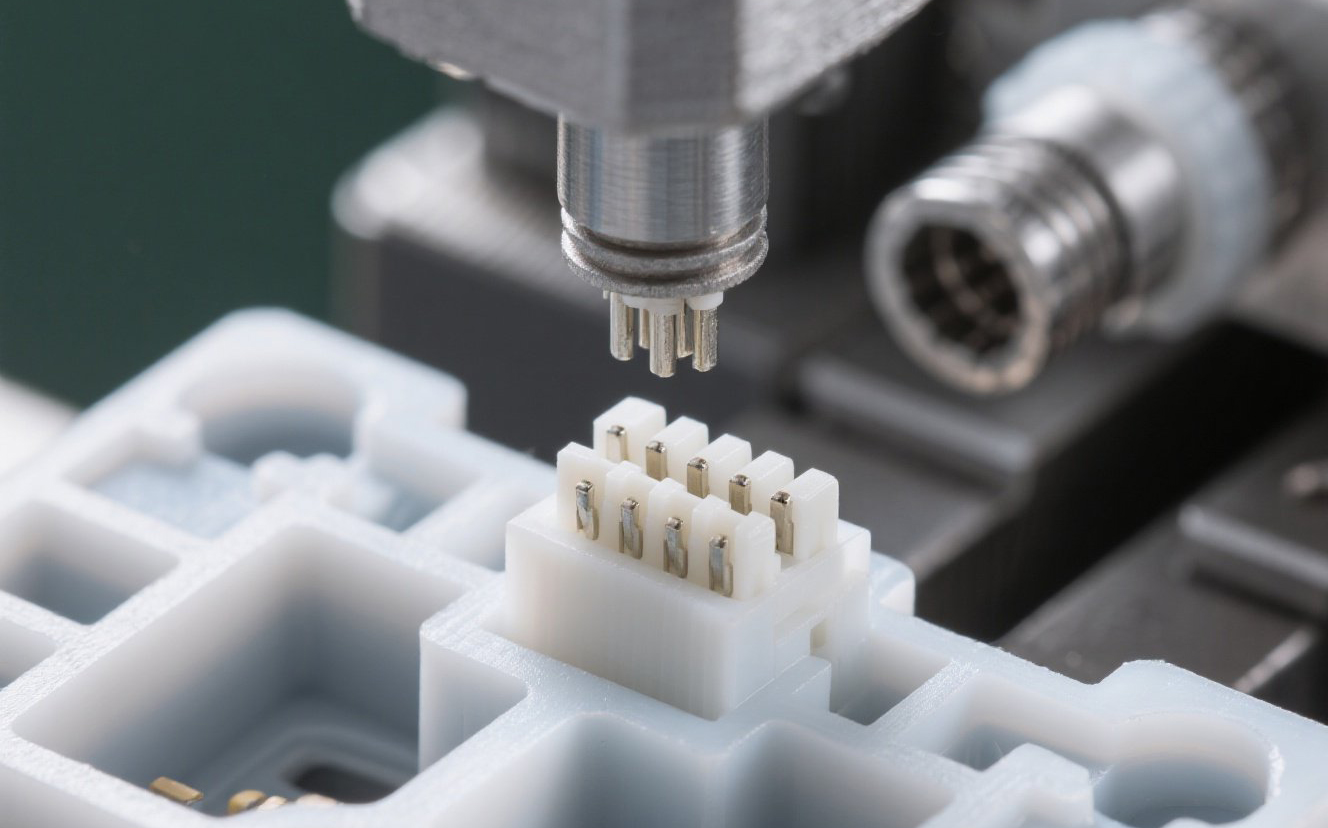

Vision-Assisted Insert Positioning: Industrial cameras locate metal components within 0.02mm accuracy; error-proof response time <50ms.
Real-Time Pressure Profiling: In medical catheter handle overmolding, in-mold pressure sensors dynamically adjust packing curves, limiting weight variation to ±0.15%.
| Application | Representative Product | Baihao Solution | Performance Breakthrough |
|---|---|---|---|
| Consumer Electronics | TWS Earbud Charging Case | Metal hinge + PC/ABS insert molding | Zero failure in 100,000-cycle hinge test |
| Smart Home | Touch Control Panel | Glass + IML film overmolding | Surface hardness ≥4H, transmittance >92% |
| Automotive | Waterproof Connectors | PPS overmolding on 0.4mm-pitch terminals | IP67 sealing / 1000h salt spray resistance |
Micro-Molding & LDS Integration
For 5G mmWave antenna housings, Baihao achieves 0.15mm-thin LCP overmolding with integrated Laser Direct Structuring (LDS), maintaining ±0.03mm circuit accuracy.
Smart Material Applications
Temperature-responsive TPE overmolding for e-cigarette casings enables visual interaction with ±2°C activation precision.
Digital Twin Process Optimization
Virtual Trial System based on Moldflow simulation reduces prototype trials by 60% and material waste by 45%.
Overmolding and insert molding have evolved from assembly techniques into functional integration systems. Dongguan Baihao Plastic Technology drives lightweight consumer electronics, automotive reliability, and ergonomic medical designs through expertise in material interface control, micro-deformation compensation, and intelligent process monitoring.
Where precision molding merges with functional elements at the molecular level, product boundaries dissolve — this embodies Baihao’s technical manifesto: reshaping industries through millimeter-scale mastery.
Baihao Precision: Building reliability within 0.01mm displacements; Writing legends of accuracy at 200°C melt temperatures
